HG2 D-PILLAR
LIGHTS
5 Year Warranty

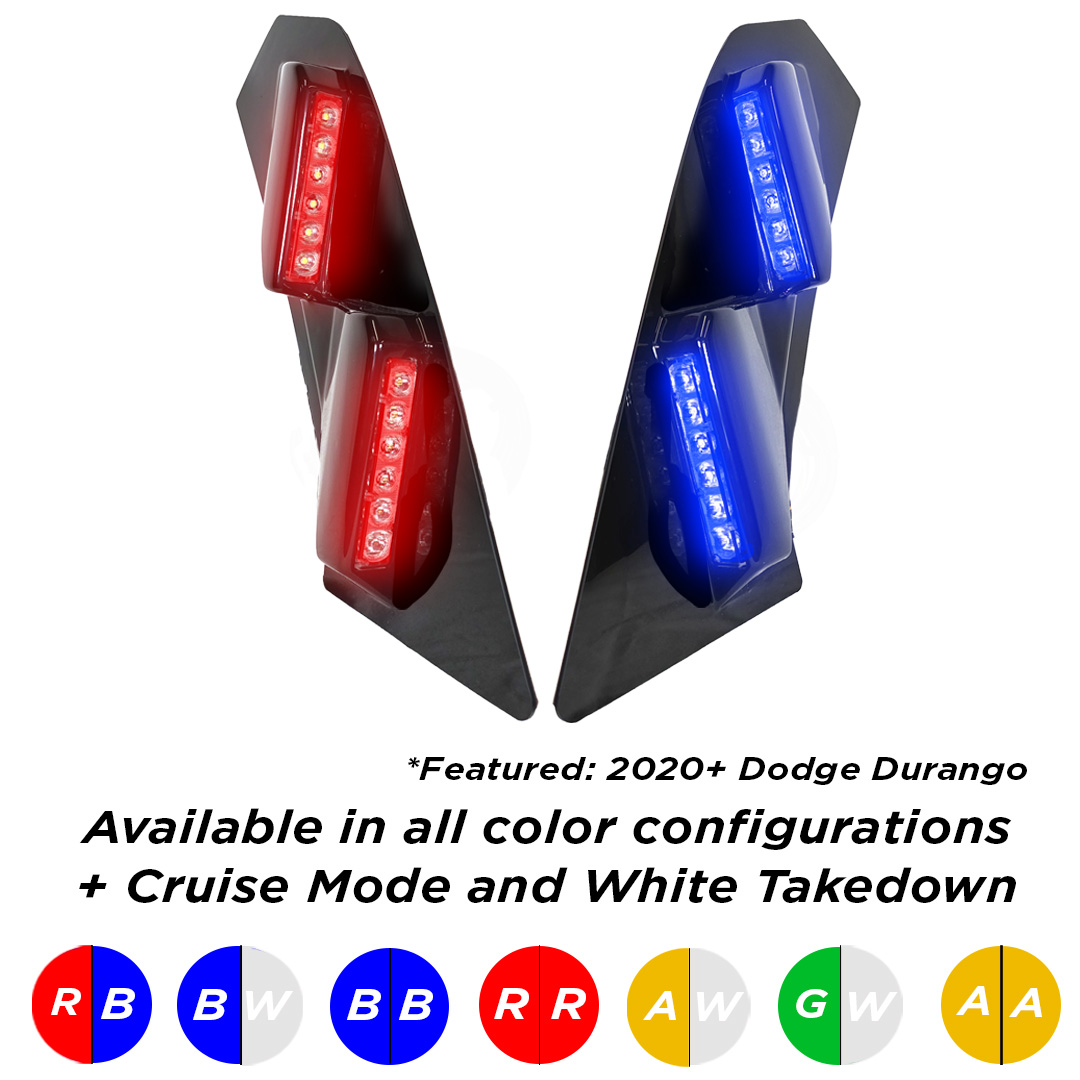

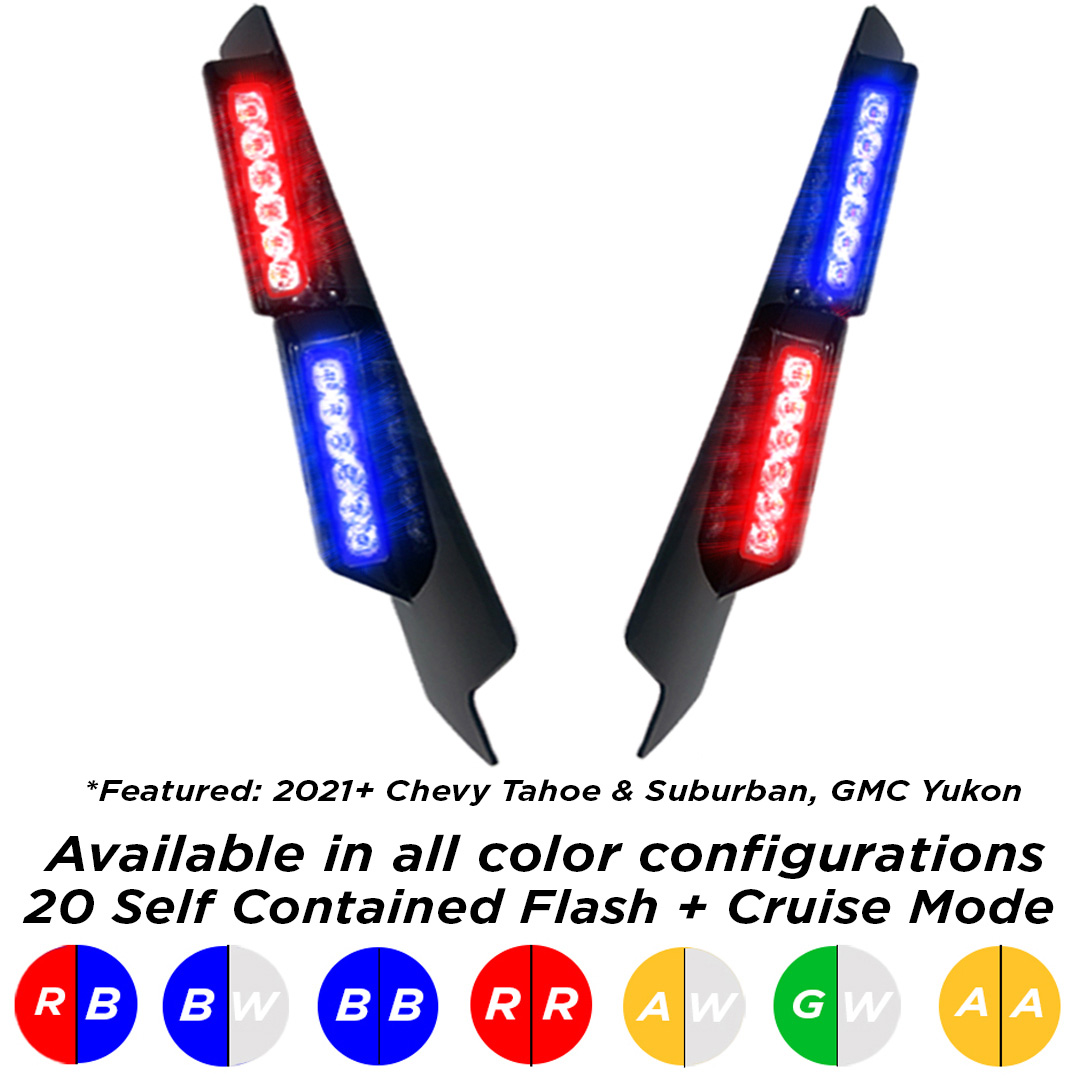

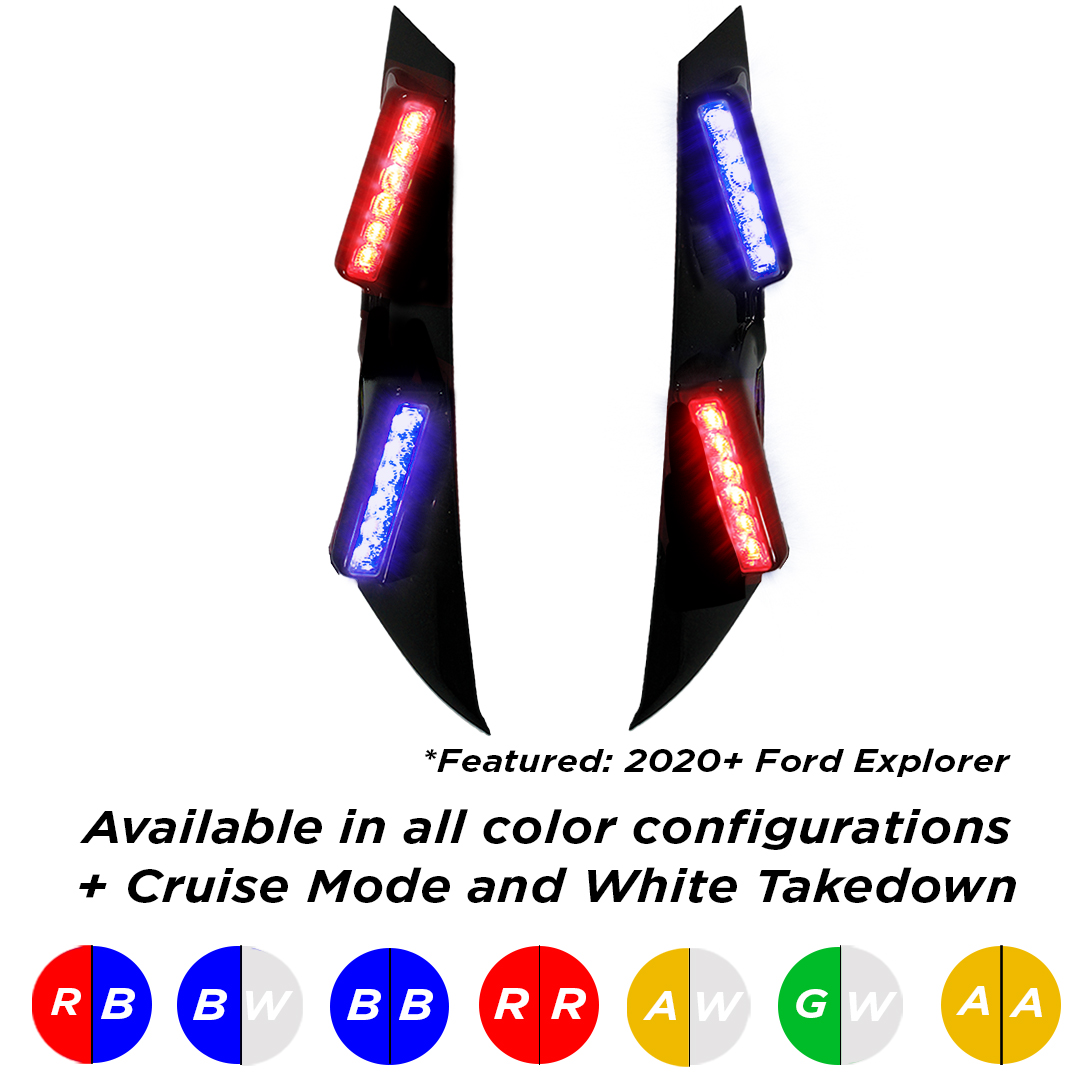

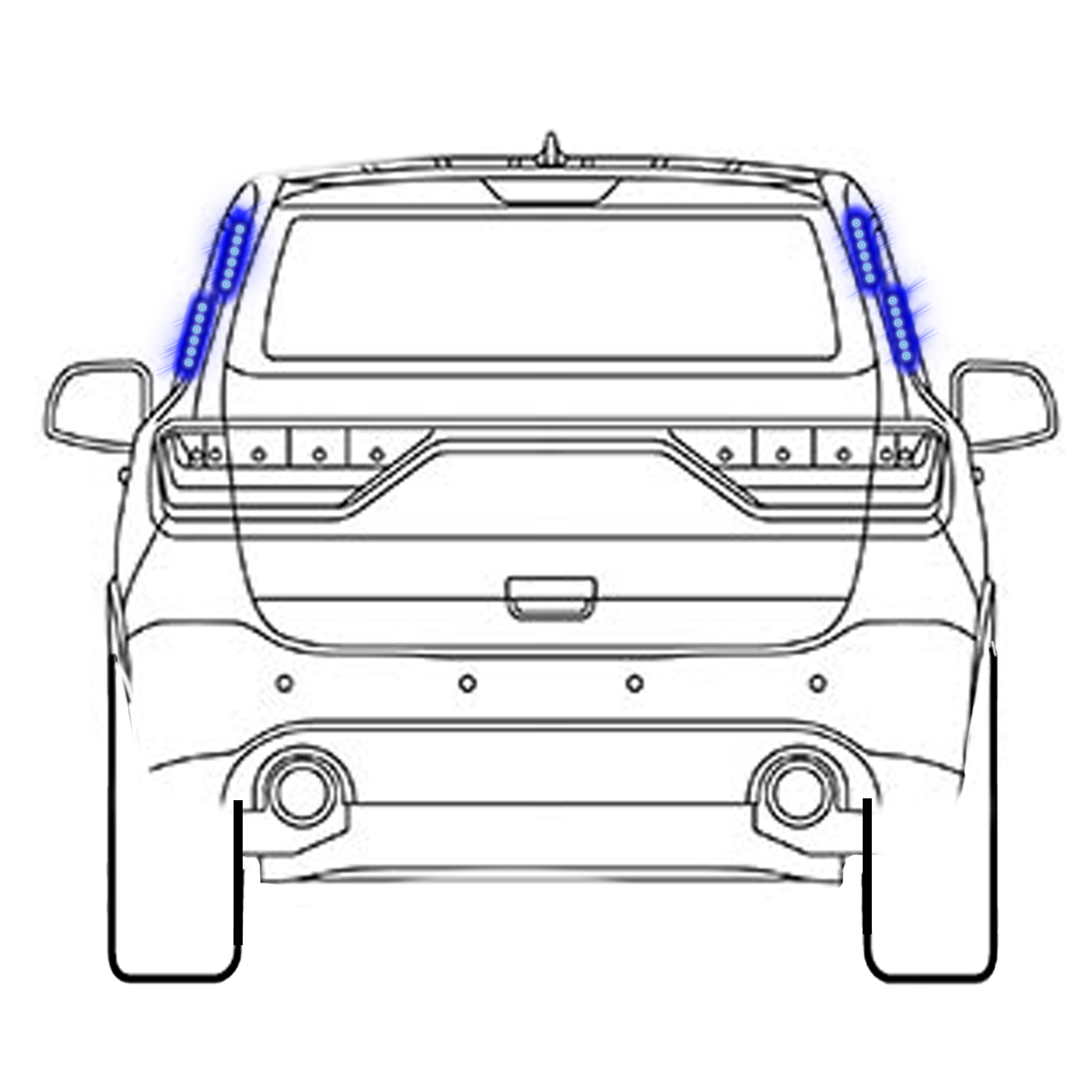

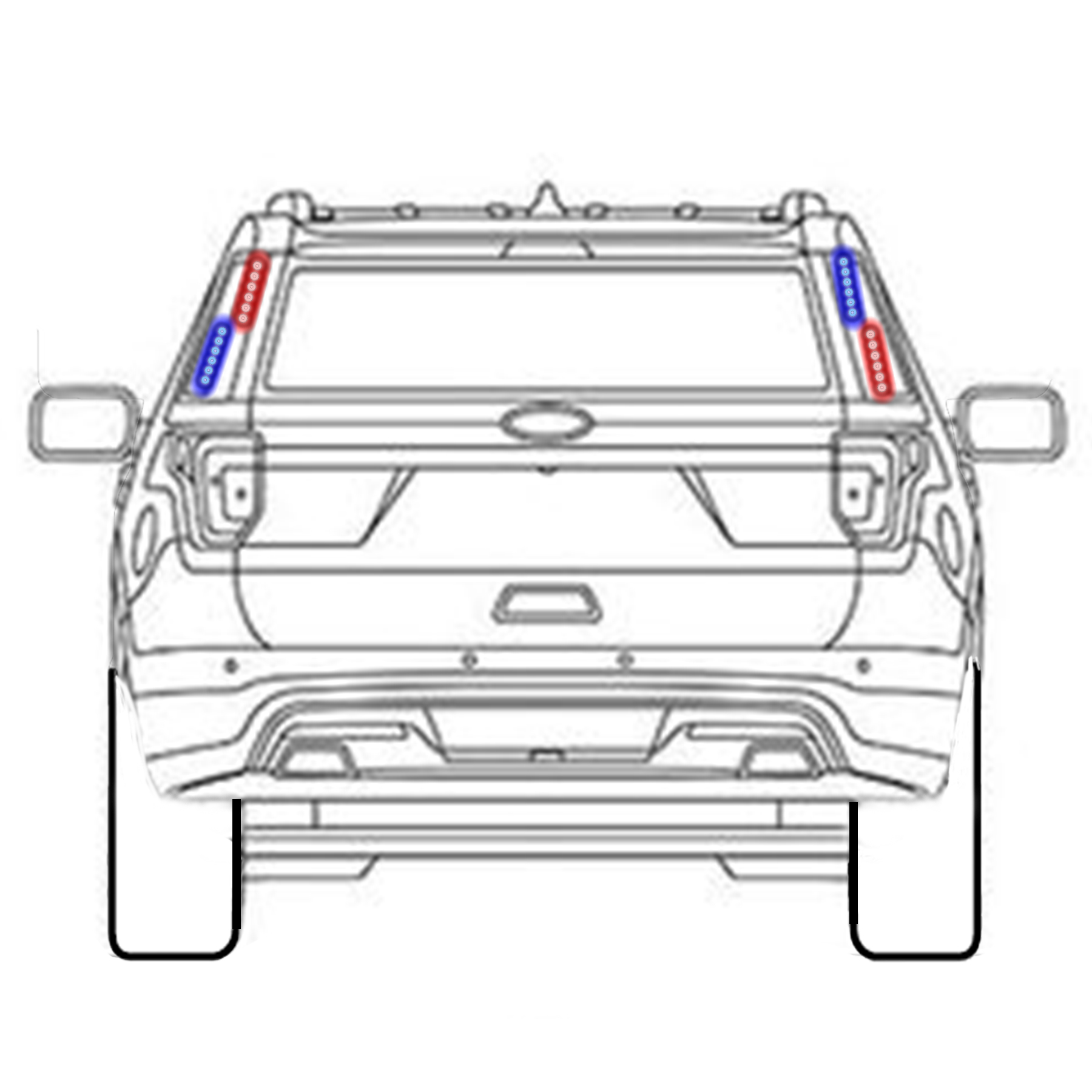

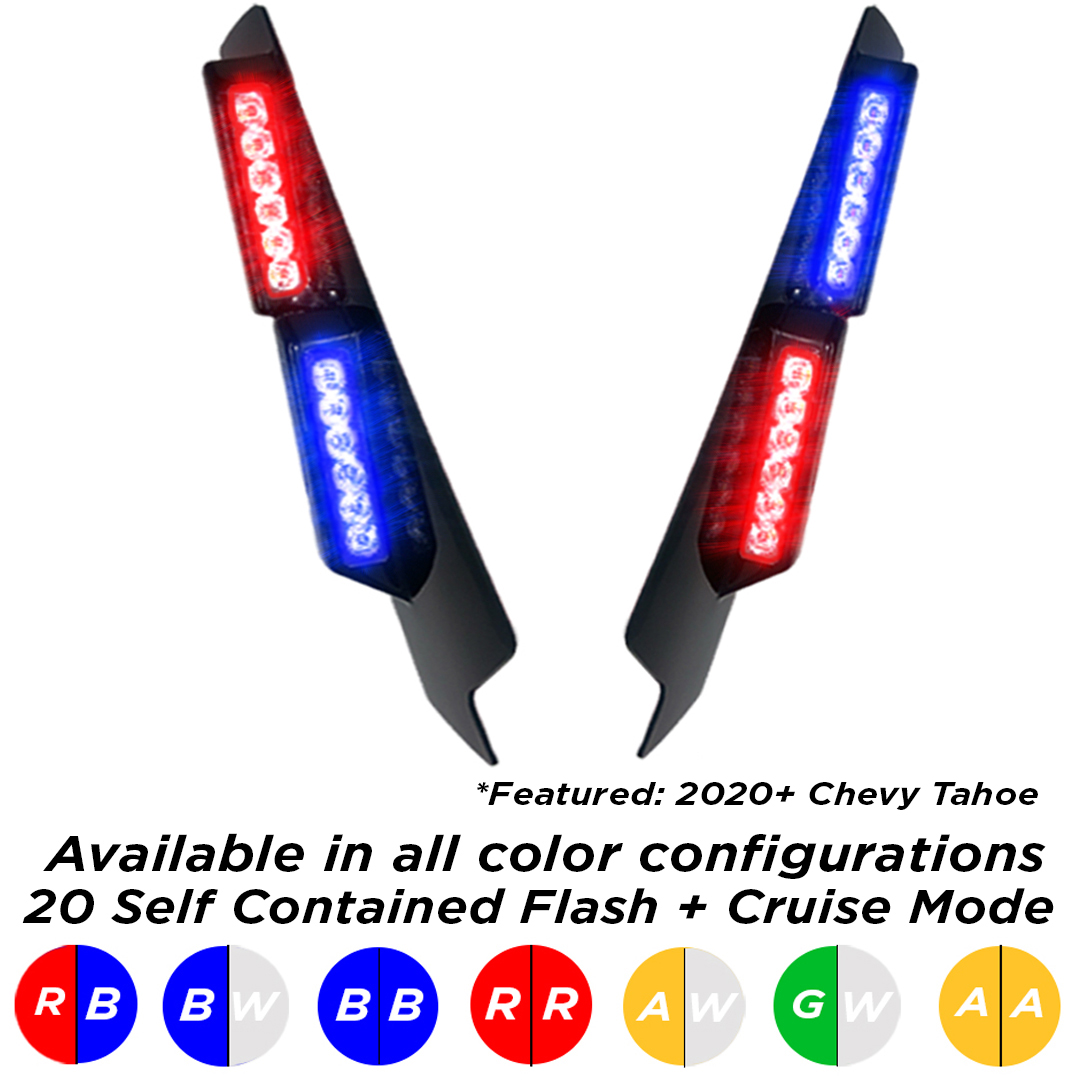

HG2 D-Pillar Lights were designed with durability in mind. Exterior mounted above the taillights and custom built to hug the curves of the vehicle, the HG2 D-Pillar Lights are built to withstand any climate or condition regardless of it’s thin profile. You can count on our high-powered Cree LEDs to perform flawlessly under any circumstance. Available for Dodge Durango, Chevy Tahoe and Ford Explorer.
APPLICATION / MOUNTING: Exterior Use / Surface Mount
DIMENSIONS: 4.3”(W) x 19.5”(H) x 1.3”(D)
INPUT VOLTAGE: 9-15 VDC
OPERATING TEMPERATURE: -4° to 185° F (-20° to 85° C)
CURRENT DRAW
1.5A Average
1A min. / 3A max dependent on flash pattern
24 5mm High-intensity, wide-angle LEDs
FLASH PATTERNS: 20
CHASSIS Black Finish Powder Coated Aluminum Housing
WIRE LENGTH: 3 Feet (36 Inches)
CERTIFICATIONS: SAE J595 Class 2
